Wastegate Helper Spring

The FrankenTurbo F4H-BT turbochargers that I acquired were a beta product at the time I obtained them and upon the suggestion of a shop that I valued the opinion of I swapped the included wastegate (wg) housings for the Borg-Warner K03 wg housings.

Borg-Warner K03 Wastegates
Borg-Warner K03 Wastegates

While testing the F4H to see what they were capable of I noticed that they were having a difficult time holding boost past 4500 rpm.  I installed a manual boost controller in the car removing the N75 boost control valve with the intent of seeing if I could get the F4H’s to hold a higher boost level, approximately 24 psi, to red-line.  With the MBC set at 24 psi I logged the car with the following results:

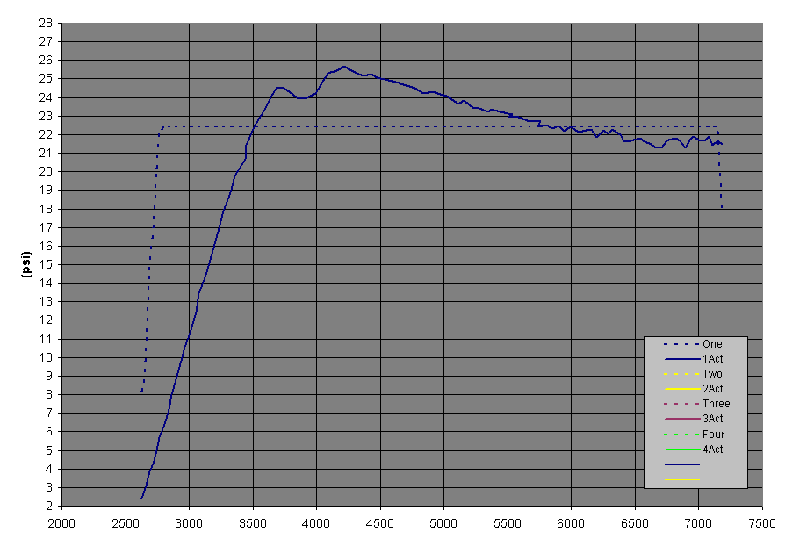

wg_hs6Not what I was hoping for.  I decided that I would try and tighten down the wastegates some out of concern that the turbine inlet pressure (TIP) was rising to a point that the wastegate flapper door was being pushed open, causing exhaust gases to bypass the turbine and preventing the desired boost level from being reached.  Without sufficient preload on the wastegate the wastegate flapper door could be getting pushed open.

After increasing the preload on the wastegate I disconnected the N75 boost control valve in order to see at what pressure level the wastegates would be pushed open.  The principal in play here is that at some boost level there will be sufficient TIP to force the wastegate flapper open and regulate boost at the level it took to force the door open.  This boost level is the pre-load or cracking pressure.  With the N75 disconnected pressure from the compressor housing is directed straight to the wastegate housing so that at the preload pressure the wastegate door opens.  I went out and logged the car again.

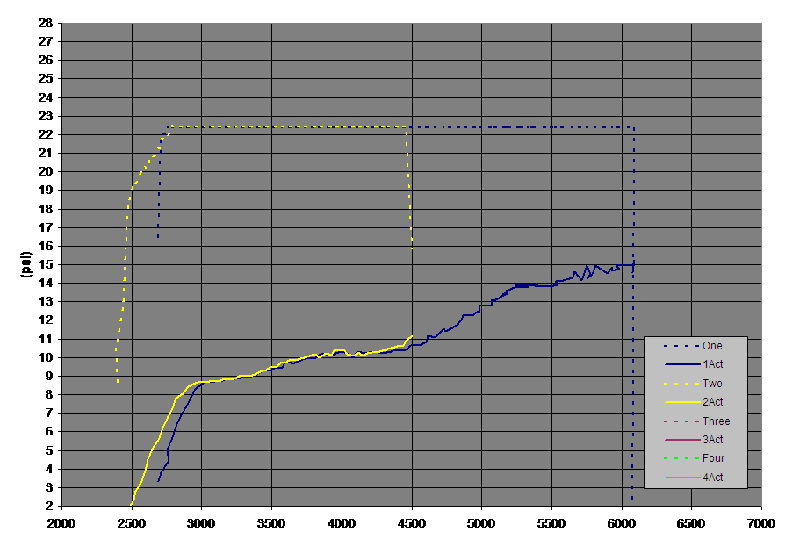

F4H-BT Boost CreepNow I was getting what is referred to as boost creep.  This results when not enough exhaust gas is bypassing the turbine and exiting via the wastegate port.  What should happen is that as rpms increase and more exhaust gas is expelled from the engine the wastegate door will open further to allow more gases to bypass the turbine, this limits the amount of boost produced by the compressor.  I was seeing boost creep, and this was because I had tightened up the wastegate actuator arm in an effort to increase the preload but at the same time I was decreasing the amount of travel available to the actuator arm.  As boost pressure was rising the flapper door opened, but as more exhaust gases were flowing the door reached at point at which it could no longer open, the wastegate arm had no more travel left.  With the door open as far as it could go, and exhaust gas volume continuing to rise with rpm, more of the gas was going through the turbine, pushing boost up further and creating even more exhaust gas.  An undesirable cycle of boost continuing to build well past what is desired with lifting off of the accelerator pedal being the only way to break the cycle.

The problem I was facing was now clear, the K03 wastegates were not sufficiently strong to hold the wastegate flapper shut at the boost levels I wanted to operate the F4H’s at and cranking up the wastegate preload would overdrive the turbochargers.  I contacted some people who had operated K04 hybrid turbochargers and they confirmed that the stock K03 wg’s were insufficient for holding boost pressure levels in the 24 psi range.  A wastegate preload in the range of 11-12 psi would be needed and this was far in excess of the K03 normal operating point.  My options were to try replacing the wastegates or shore up the wastegate mechanism via a set of helper springs.

The helper spring seemed like the easier solution as well as being something interesting to try out.  I setup a test with a spare wastegate canister that I could attach springs to in order to find a spring rate that paired up well with the K03 to give me the preload I was looking for.

Helper spring test setup
Helper Spring Test Apparatus

Attaching the helper spring to the turbocharger turned out to be an exercise in patience due to the turbochargers being installed on the car.  I obtained some metal tabs with eyelets that I could attach to the turbocharger housing and I placed a small hose clamp on the wastegate actuator arm to attach the other end of the helper spring to.

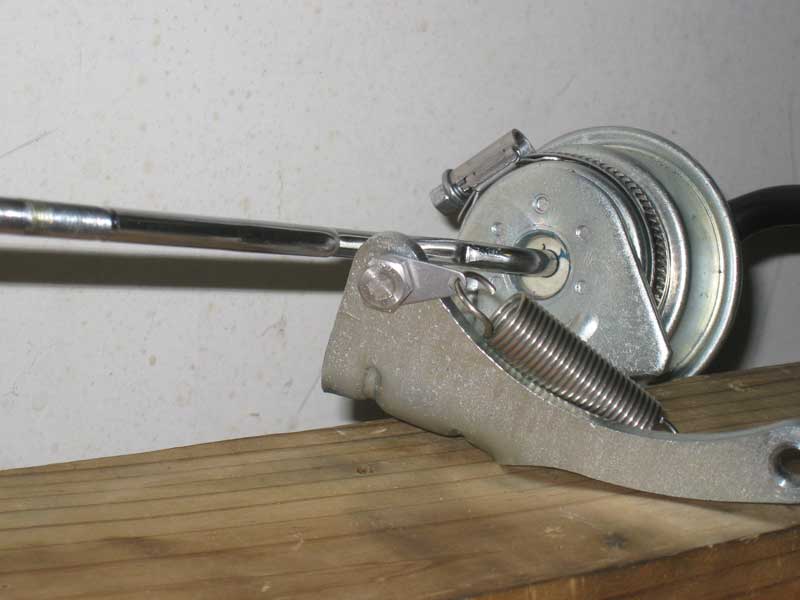

Wastegate Helper Spring EyeletSetting the preload had the making of being a very difficult task – the high spring rate springs that I was using were difficult to extend off the car, let alone trying to extend them up inside the engine compartment with small tools while trying to tighten down the clamp to the actuator arm.

Helper Springs on K03 Turbocharger

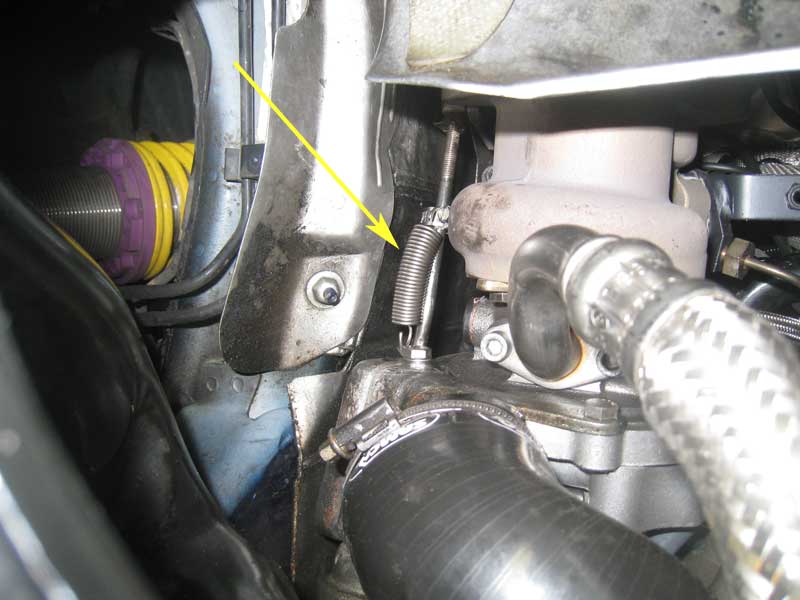

Helper Spring Installed On Wastegate Actuator Arm

I realized that I could extend the spring off of the car and place small washers between the extended coils and then release the tension so that the spring was in an extended position.  Then I attached the spring to the wastegate arm and finally I would pull the washers from the spring coils putting tension on the wastegate arm.  This was quite the process of trial and error, but finally I was able to set the desired preload, roughly 11.5 psi of preload on each of the wastegate actuators.

I then went out to check how the new preload held with the N75 disconnected.

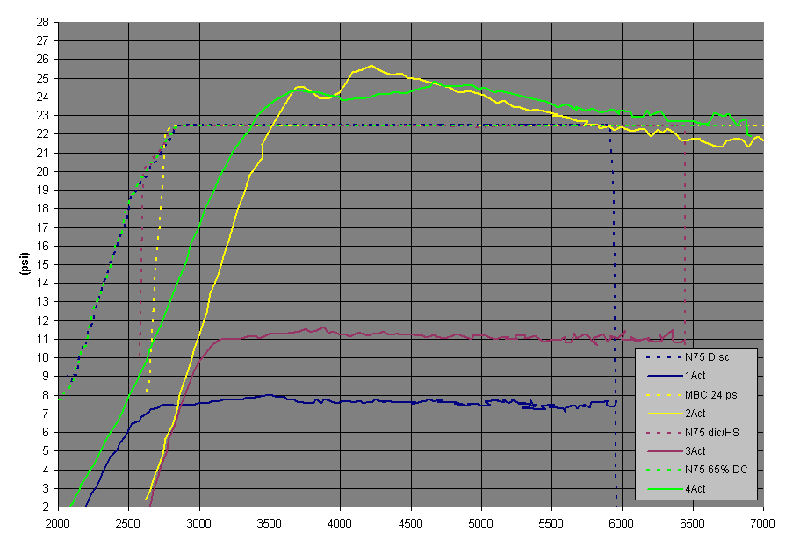

Wastegate preload test runIn the chart above the blue line was the K03 preload test, holding approximately 7-8 psi, the maroon line is the K03 assisted by the helper springs, holding between 11-11.5 psi out to 6500 rpm.

Finally, the real test, to see how the turbochargers performed at a boost level that I was shooting for:

Helper Spring High Boost Just what I was hoping to see, the F4H’s were holding boost all the way to red-line with no sign of dropoff.

Note: The helper springs were sourced from McMaster-Carr. The part number I used was: 9433K36 – Precision Stainless Steel Extension Spring, 1.25″ Length, .375″ OD, .055″ Wire Diameter. They were attached using: 96995A130 – Plain Steel Washer with Tag Hole, .27″ A-Dimension, .02″-.04″ Thick, Packs of 10

What follows is a basic overview of what the helper spring is doing.

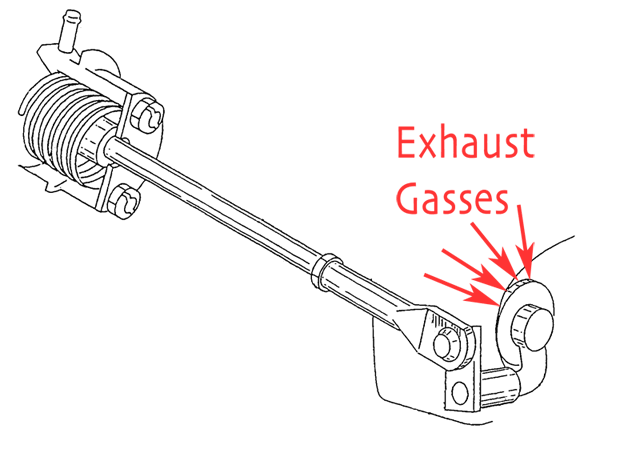

Ideally the spring in the wastegate canister is sufficiently strong to hold the wastegate flapper closed against the forces of the exhaust gas.
Ideally the spring in the wastegate canister is sufficiently strong to hold the wastegate flapper closed against the forces of the exhaust gas.

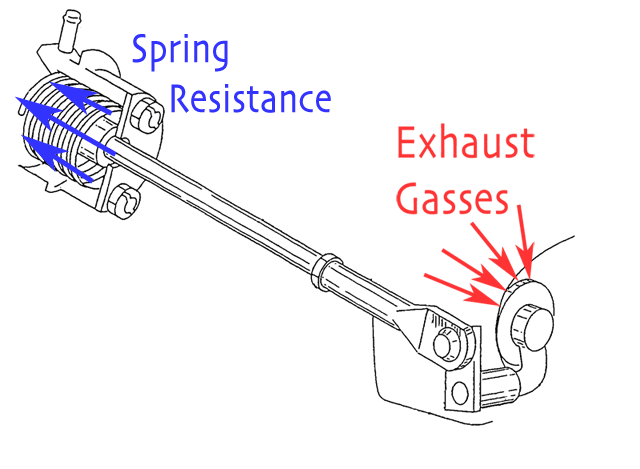

The spring in the canister resists being compressed by the forces exerted on the flapper door, which are transmitted through the actuator arm.
The spring in the canister resists being compressed by the forces exerted on the flapper door, which are transmitted through the actuator arm.

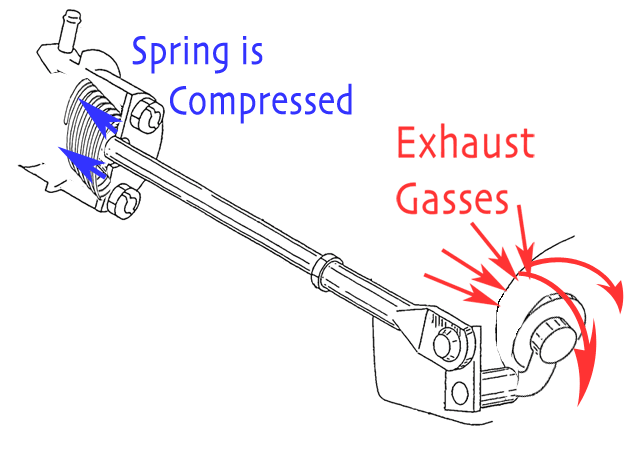

When the forces from the exhaust gas pressure becomes to great, as when more power is developed by the motor than what the wastegate was designed to act against, the wastegate spring compresses and exhaust gas escapes.
When the forces from the exhaust gas pressure become too great, as when more power is developed by the motor than what the wastegate was designed to act against, the wastegate spring compresses and exhaust gas escapes causing boost to bleed off.  (The first chart on this page illustrates what this looks like – decreasing boost with increasing rpm)

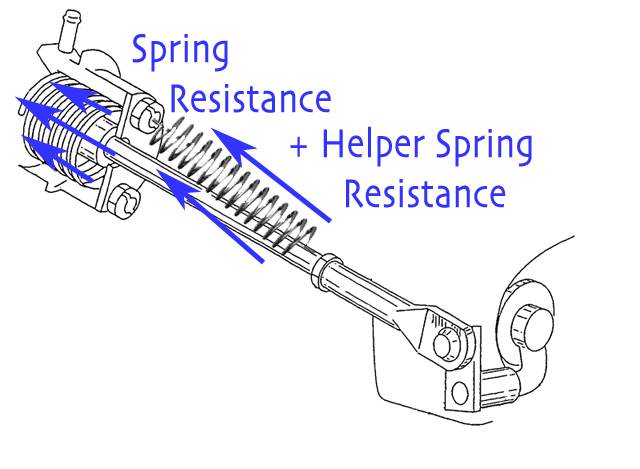

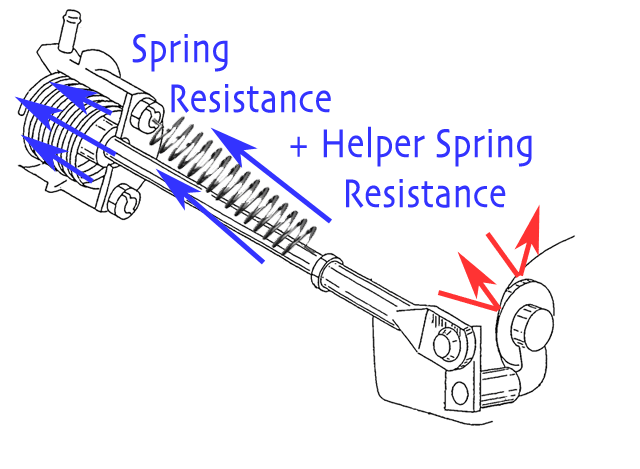

The helper spring is added to increase the resistance forces available to counter the exhaust gas pressure.
The helper spring is added to increase the resistance forces available to counter the exhaust gas pressure.
Now even with the higher exhaust gas pressure (from the greater power output) there is adequate spring resistance to keep the wastegate flapper door shut ensuring boost pressure is maintained at the desired level.
Now even with the higher exhaust gas pressure (from the greater power output) there is adequate spring resistance to keep the wastegate flapper door shut ensuring boost pressure is maintained at the desired level.

This next section explains why simply increasing the preload via the original wastegates may not be successful when operating at high power levels, which generate higher pressures in the exhaust stream.

If the exhaust gases are forcing open the wastegate flapper to a point which finally the spring comrpession creates enough resistance to stop the flapper from opening further, why not add some preload to the spring to stop it from allowing the flapper to open?
When the exhaust gases are forcing open the wastegate flapper, the door opening causes the spring in the wastegate canister to compress, and eventually it will be compressed to a point where enough spring resistance is created to stop the flapper door from opening further.  So why not add some preload to the spring?  That way it will exert enough resistance from the start to prevent the flapper door from opening prematurely.

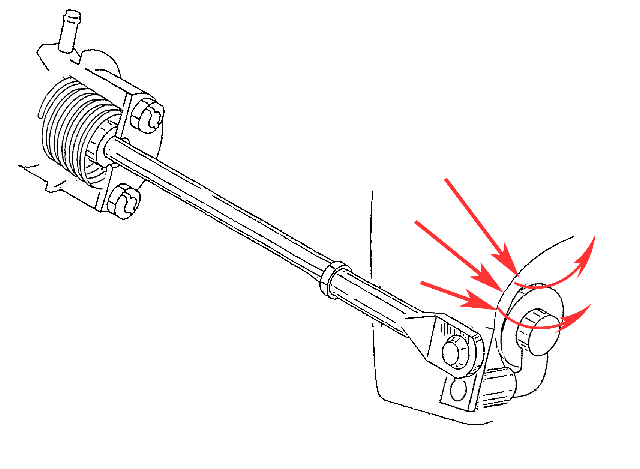

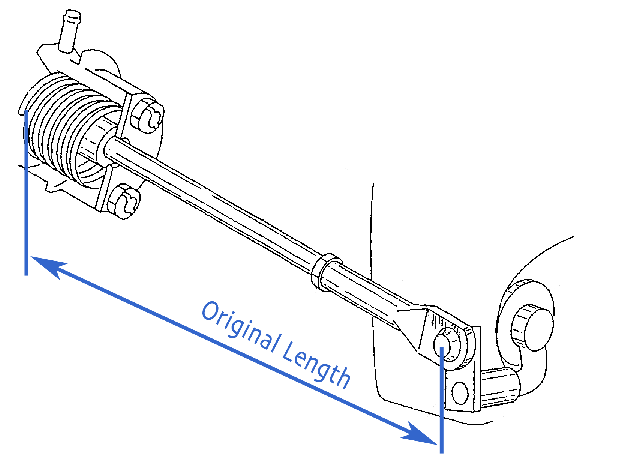

To a limited extent this is possible if the power output does not exceed the level the wastegate was designed for by very much. But what occurs when preload is added is that the total length of the arm and spring is changed from the original length.
To a limited extent this is possible if the power output does not exceed the level the wastegate was designed for by very much. But what occurs when preload is added is that the total length of the arm and spring is changed from the original length.

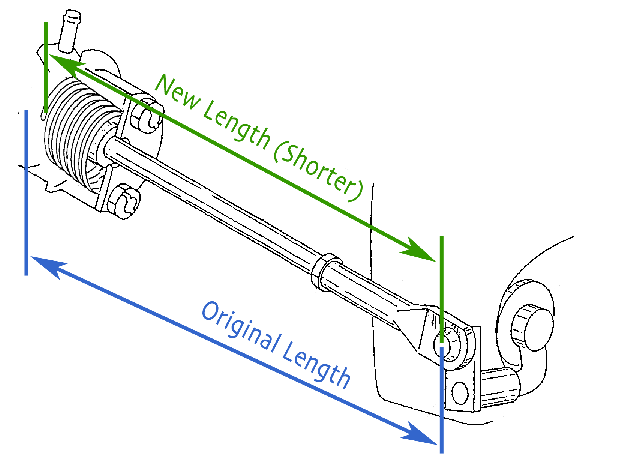

As more preload is added the overall length decreases as the spring is compressed. (The spring being compressed is what is increasing the preload level)
As more preload is added the overall length decreases as the spring is compressed. (The spring being compressed is what is increasing the preload level)

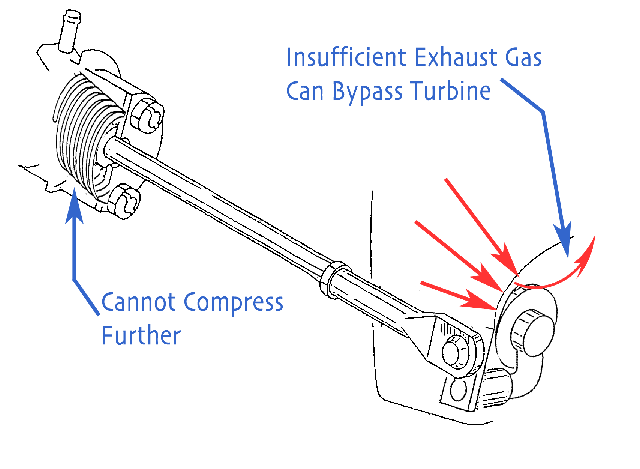

Now, because the available amount of arm travel is reduced proportional to amount the spring was compressed, the flapper door is no longer able to open as much. There's no longer as large of an opening for bypass exhaust to escape. If not enough exhaust gases are able to bypass the turbine by going out through the wastegate port then boost pressure will continue to rise, a condition referred to as boost creep.
Now, because the available amount of arm travel is reduced in conjunction with the amount the spring was compressed, the flapper door is no longer able to open as much. There’s no longer as large of an opening for bypass exhaust to escape. If not enough exhaust gases are able to bypass the turbine by going out through the wastegate port then boost pressure will continue to rise, a condition referred to as boost creep.  (Illustrated on the second graph where the boost pressure rises along with rpm)

The importance of matching the spring in the wastegate to the application is seen in several ways.  A wastegate that is of insufficient size can lead to boost loss at higher rpm when the wastgate flapper door is forced open.  Attempting to add preload in excess of what the wastegate was designed for, so that the door stays shut, can result in boost creep.

Simply putting the highest preload wastegate available onto the turbocharger is not necessarily a desirable option because the engine computer is unable to regulate boost pressure via the N75 valve below the wastegate preload level.  The wastegate preload is the threshold beyond which the ECU via the N75 controls boost pressure.  In the absence of control via the N75, boost control is done by regulating the air intake through the throttle plate.  Part throttle performance at boost levels below the prelaod can suffer and the higher the preload is set, the greater the operating range where part throttle drive-ability can be impacted.
